AA 1.5V 2900mAhh LiFeS2 battery

Model: AA LiFeS2/LR6/L91/R6/14505
Rated voltage: 1.5V
Nominal Capacity:2900mAh
Non-rechargeable battery

Advantage:
1, Larger energy. AA battery capacity is up to 2900mAh, AAA  is1200mAh
2, Excellent high power performance. Excellent large current discharge performance, AA maximum discharge current up to 2000mAh, AAA maximum discharge current of 600mAh, particularly suitable for high power applications. In the high-power conditions, a lithium-iron battery equivalent to 4-10 only ordinary alkaline batteries. Especially suitable for digital cameras, 4WD, walkman, VCD and other digital products.
3, the self-discharge rate. Dry conditions at room temperature shelf life of 10 years.
4, wide operating temperature. At -40 °C to +70 °C under the conditions of normal use in the world, as long as human beings can live a normal life where you can almost use lithium-iron battery.
5, the general applicability. Operating voltage 1.5V, at any purposes, replace alkaline, carbon zinc batteries. But in general application of occasions, can not fully reflect its high-energy, high-power performance.
6, green. Do not contain mercury, chromium, lead to any toxic substances, passed SGS testing, green non-polluting energy.
7, light weight.Weight of lithium-iron battery is the same type alkaline manganese battery 2 / 3.



3.7V 1600mAh 18500 battery with welded tabs

Application:
Widely used in solar energy lamps, lawn lamps and lanterns, reserve energy model, electric tools, toys and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of
-20°C-60°C
6. Charge/discharge cycle characteristics are excellent

Li ion Battery Cylindrical List:
ModelVoltageCapacityDimension(mm)WeightInternal Resistance
(V)(mAh)DiameterHeight(g)(mΩ)
104403.736010449.5150
142503.725014256.5200
144303.7650144317.880
145003.7750145020.580
163403.7700163417.5120
173353.7650173318.0120
175003.71150175027.080
176503.71550176537.080
185003.71600184931.580
186503.71400186532.080
186503.71800186540.080
186503.72000186543.580
186503.72200186545.080
186503.72400186548.080
266503.74000266590.070
326503.750003265120.050





3.7V 1500mAh 18650 10C li ion battery

Application:
Widely used in solar energy lamps, lawn lamps and lanterns, reserve energy model, electric tools, toys and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of
-20°C-60°C
6. Charge/discharge cycle characteristics are excellent
ModelJOY18650
Nominal Voltage3.7V
Nominal Capacity1500mAh
Discharge Cut-off Voltage3V
Charge Voltage4.2V
Standard ChargeConstant charge current 0.2C
        Constant voltage 4.2V,0.01C cut off
Standard Discharge            Constant current 0.2C,end voltage 3V
Fast ChargeConstant charge current 1C
           Constant voltage 4.2V,0.01C cut off
Max. Continual Charge Current1C
Max. Continual Discharge Current10C
Storage Temperature-20~40°C
Cycle Life >1000times
Weight 56g





3.7V 5000mAh 32650 lithium ion rechargeable battery

Application:
Widely used in solar energy lamps, lawn lamps and lanterns, reserve energy model, electric tools, toys and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of
-20°C-60°C
6. Charge/discharge cycle characteristics are excellent

Li ion Battery Cylindrical List:
ModelVoltageCapacityDimension(mm)WeightInternal Resistance
(V)(mAh)DiameterHeight(g)(mΩ)
104403.736010449.5150
142503.725014256.5200
144303.7650144317.880
145003.7750145020.580
163403.7700163417.5120
173353.7650173318.0120
175003.71150175027.080
176503.71550176537.080
184903.71400184931.580
186503.71400186532.080
186503.71800186540.080
186503.72000186543.580
186503.72200186545.080
186503.72400186548.080
266503.74000266590.070
326503.750003265120.050

3.2V 3300mAh 26650 LiFePo4 battery cell

Application:
Widely used in solar energy lamps, lawn lamps and lanterns, reserve energy model, electric tools, toys and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of -20°C-60°C

6. Charge/discharge cycle characteristics are excellent


LiFePO4 Battery Model List:
ModelVoltageCapacityDimension(mm)WeightInternal Resistance
(V)(mAh)DiameterHeight(g)(mΩ)
101303.23010133.01000
104403.222010448.020
142403.216014248.040
145003.2600145018.580
163403.2400163416.0150
185003.21000185032.060
186503.21200186539.0100
186503.21400186540.045
186503.21500186542.045
224303.21200224341.045
226503.22000226561.035
266503.22500266582.035
266503.23000266585.030
266503.23300266590.028
326003.235003260125.015
326503.240003265130.012
329003.250003290188.012
421203.21200042120390.010

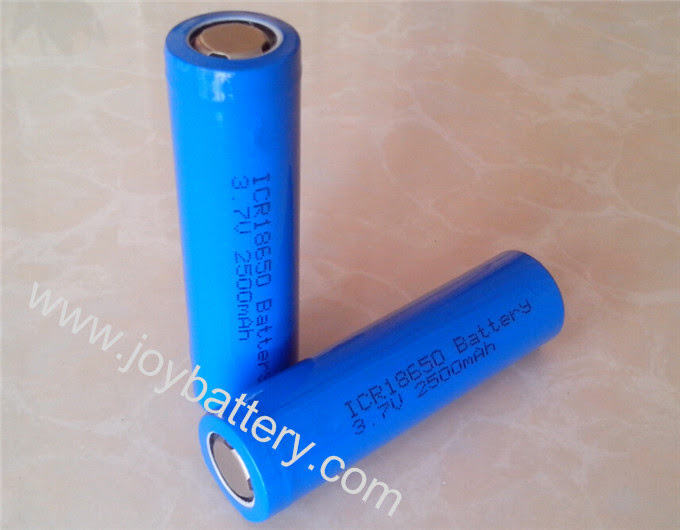

3.7V 2500mAh 18650 lithium ion rechargeable battery

Application:
Widely used in solar energy lamps, lawn lamps and lanterns, reserve energy model, electric tools, toys and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of
-20°C-60°C
6. Charge/discharge cycle characteristics are excellent
ModelJOY18650
Nominal Voltage3.7V
Nominal Capacity2500mAh
Discharge Cut-off Voltage3V
Charge Voltage4.2V
Standard ChargeConstant charge current 0.2C
        Constant voltage 4.2V,0.01C cut off
Standard Discharge            Constant current 0.2C,end voltage 3V
Fast ChargeConstant charge current 1C
           Constant voltage 4.2V,0.01C cut off
Max. Continual Charge Current1C
Max. Continual Discharge Current10C
Storage Temperature-20~40°C
Cycle Life >1000times
Weight 58g





18650 3.7V 2400mAh lithium ion rechargeable battery

Application:
Widely used in solar energy lamps, lawn lamps and lanterns, reserve energy model, electric tools, toys and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of-20°C-+60°C
6. Charge/discharge cycle characteristics are excellent


Cylindrical Li ion Battery List:
ModelVoltageCapacityDimension(mm)WeightInternal Resistance
(V)(mAh)DiameterHeight(g)(mΩ)
104403.736010449.5150
142503.725014256.5200
144303.7650144317.880
145003.7750145020.580
163403.7700163417.5120
173353.7650173318.0120
175003.71150175027.080
176503.71550176537.080
184903.71400184931.580
186503.71400186532.080
186503.71800186540.080
186503.72000186543.580
186503.72200186545.080
186503.72400186548.080
266503.74000266590.070
326503.750003265120.050
